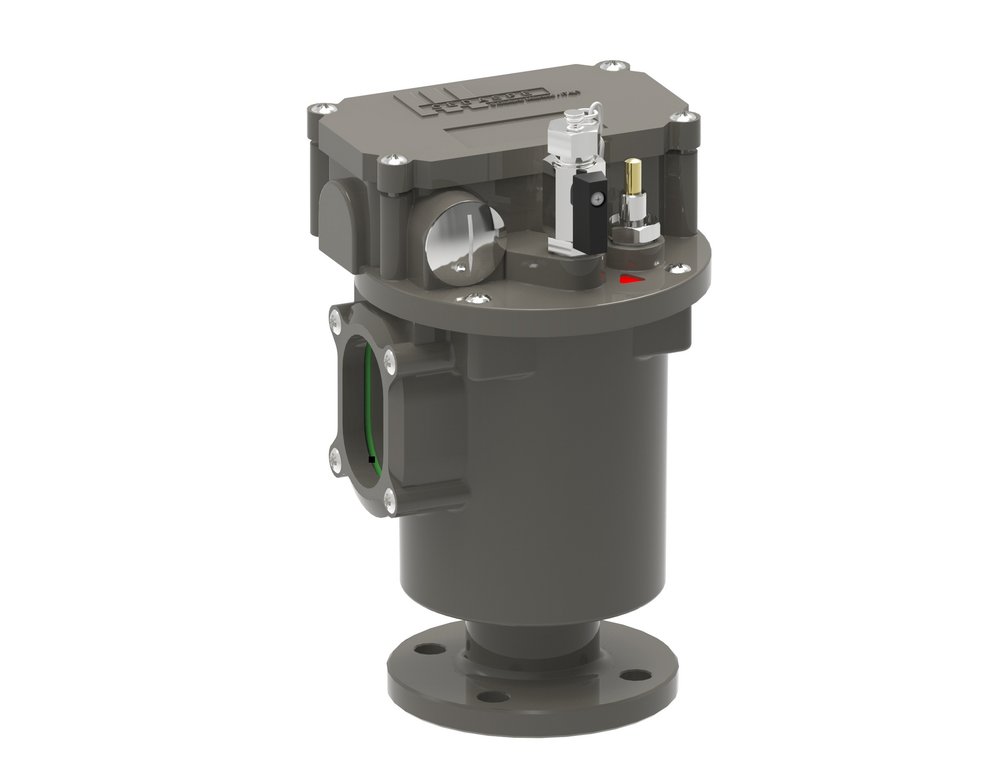

MR CEDASPE® CPR3

The protecting device for PT transformers conservator

CEDASPE® CPR is a protective device specially designed to detect failures in the rubber bag with the risk of air getting inside the conservator. The CEDASPE® CPR device senses such faults, operating the alarm circuit. Air generated by these faults is captured and collected inside the gas accumulation chamber, where the movement of a float activates the magnetic switch. It is equipped with a large graduated window, allowing clear and easy inspection from outside. Designed according to EN 50216 Standard reference.
