Dilo SF6 Gas Pressure Vessels
Safe storage.
Product Info

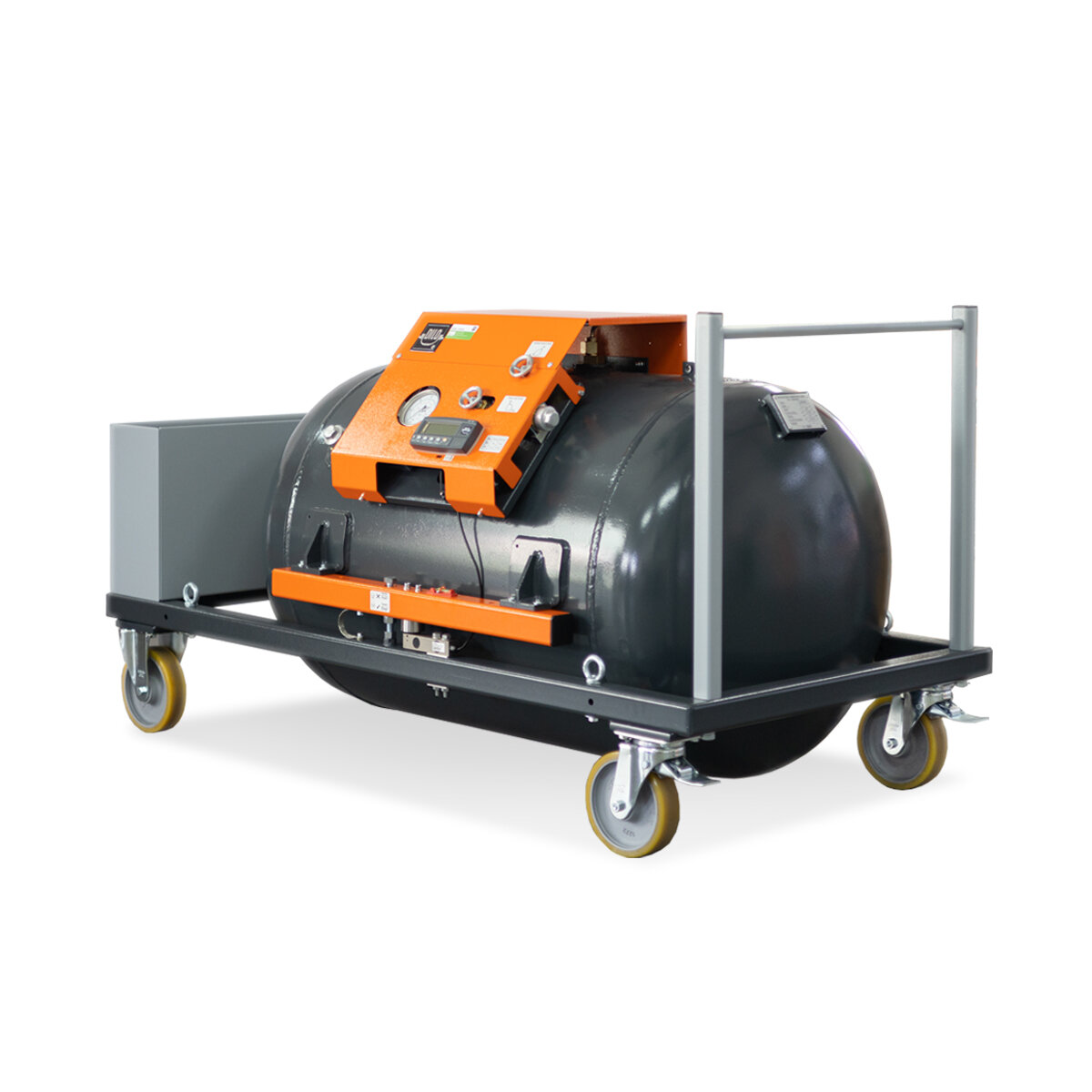

SF6Â gas pressure vessels
B176
These tanks offer sufficient volume to store or withdraw even large gas quantities in gaseous or liquid form – special feature of this type series: for withdrawal of liquid gas, the entire gas content can be withdrawn all at once without having to heat the tank.
The tanks are equipped with digital weighing scales. These weighing scales enable to determine the filling weight with an accuracy of ± 500 g, thus facilitating considerably the SF6 gas monitoring and the registration of the gas quantities in accordance with the EU directives.
Other features:
- Available with a storage volume of 300 l, 600 l or 1,000 l
- For liquid or gaseous storage or withdrawal of gas
- Digital weighing scales (measuring accuracy ± 0.5 kg)
- Pressure indication in bar, MPa, psi
- Discharge of the weighing system for transportation is not required
- Additional tool box for hoses and accessories
- Stable frame with driving rod
- Steerable and fixing rollers for comfortable transportation
- Max. operating overpressure 50 bar
- Version in accordance with EC 2014/68/EU pressure equipment directive ASME and SQL approval are available as Option
